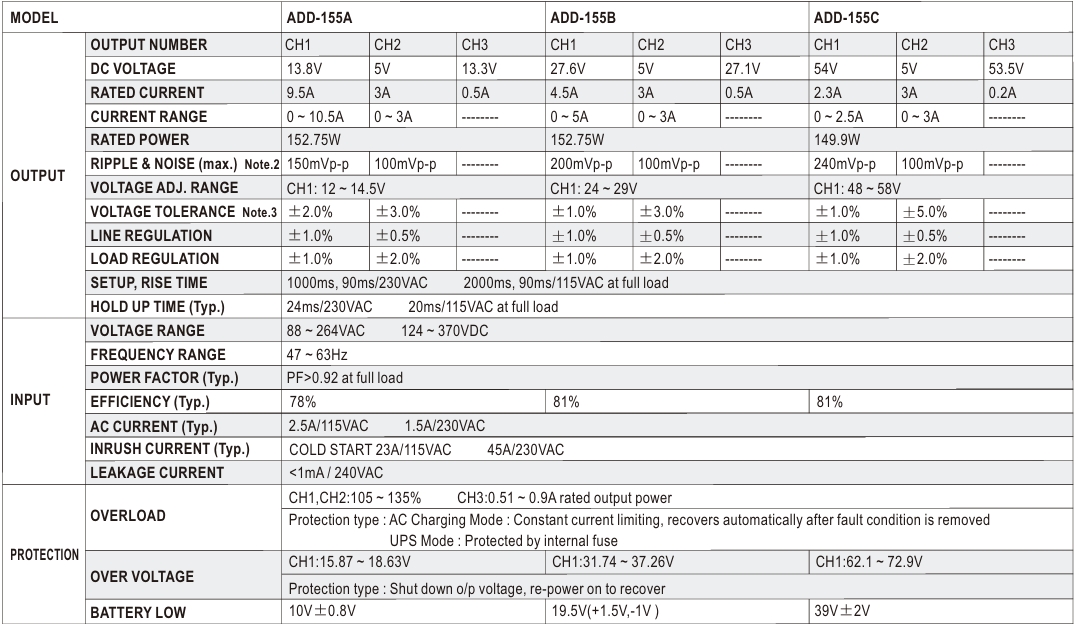

| dc-voltage |
27.1, 27.6, 5, CH1:27.6V CH2:5V CH3:27.1V
|
| rated-current |
CH1:4.5A CH2:3A CH3:0.5A
|
| current-range |
CH1:0 ~ 5A CH2:0 ~3A
|
| rated-power |
152.75
|
| ripple-noise |
CH1:200mVp-p CH2:100mVp-p
|
| voltage-adj-range |
CH1: 24 ~ 29V
|
| voltage-tolerance |
CH1:±1.0% CH2:±3.0%
|
| line-regulation |
CH1:±1.0% CH2:±0.5%
|
| load-regulation |
CH1:±1.0% CH2:±2.0%
|
| set-up-rise-time |
1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load
|
| hold-up-time |
24ms/230VAC 20ms/115VAC at full load
|
| input-voltage-range |
88 ~ 264VAC 124 ~ 370VDC
|
| frequency-range |
47 ~ 63Hz
|
| efficiency |
81%
|
| ac-current |
2.5A/115VAC 1.5A/230VAC
|
| inrush-current |
COLD START 23A/115VAC 45A/230VAC
|
| LEAKAGE CURRENT |
<1mA / 240VAC
|
| overload |
CH1,CH2:105 ~ 135% CH3:0.51 ~ 0.9A rated output power Protection type : AC Charging Mode : Constant current limiting, recovers automatically after fault
|
| over-voltage |
CH1:31.74 ~ 37.26V Protection type : Shut down o/p voltage, re-power on to recover
|
| battery-low |
19.5V(+1.5V,-1V )
|
| working-temp |

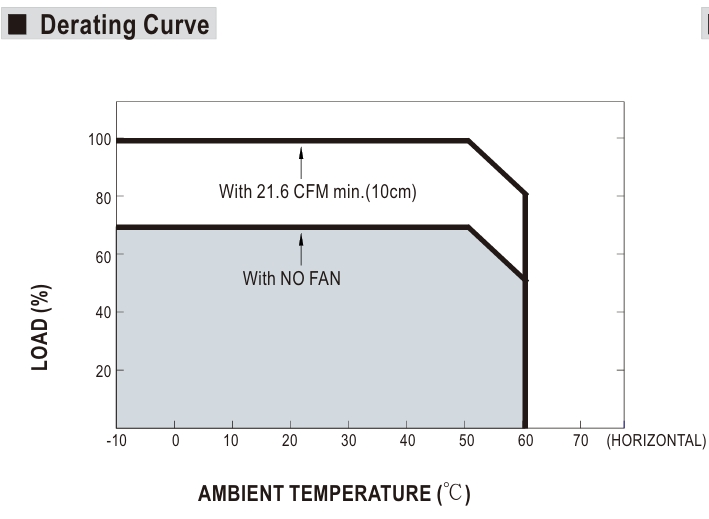

'-10 ~ +60℃ (Refer to "Derating Curve")
|
| working-humidity |
20 ~ 90% RH non-condensing
|
| storage-temp-humidity |
'-20 ~ +85℃, 10 ~ 95% RH
|
| temp-coefficient |
±0.03%/℃ (0 ~ 50℃) on +5V output
|
| vibration |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
|
| safety-standards |
UL60950-1, TUV EN60950-1 approved
|
| with-stand-voltage |
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
| isolation-resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
|
| emc-emission |
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
|
| emc-immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
|
| mtbf |
164.2K hrs min. MIL-HDBK-217F (25℃)
|
| dimension |
199*110*50mm (L*W*H)
|
| packing |
1Kg; 16pcs/16Kg/0.95CUFT
|
